QTY
|

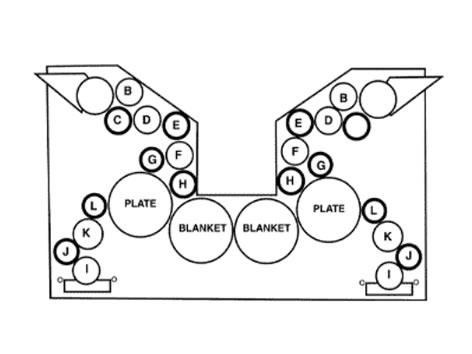

Schematic Position
|
Position
|
I.D. |
O.D. |
Face Length
|
Overall Length
|
| 2 | H |
Inside Form |
1 7/8 |
2 5/8 |
34 3/4 |
36 1/2 |
| 2 | G |
Outside Form |
1 7/8 |
2 3/4 |
34 3/4 |
36 1/2 |
| 4 | C, E |
Transfer |
1 7/8 |
2 3/4 |
34 3/4 |
36 1/2 |
| 2 | L |
Water Form |
1 7/8 |
2 3/4 |
35 1/2 |
36 1/2 |
| 2 | J |
Water Pick-Up |
1 7/8 |
2 3/4 |
35 1/2 |
36 1/2 |
| (SSC) (G) |
SSC Form |
1 7/8 |
2 3/4 |
34 3/4 |
36 1/2 |
|
| Full Unit Consists of: 8 ink rollers and dampener |
|
|
|
|
|
|
| Additional Information
|
||||||
| Bearings:
|
Part No: #RAL012NPPB (2 per set) | |||||
| Blankets with bars:
|
Size: 24 5/8 x 35 x .066 | |||||
| Packing Paper: | Size: 25 x 36 Available in single sheets: .002,.003,.004,.005,.006,.009,.010, and .011. |
